Jaycar MP3735 MPPT solar charge controller
I’m using the Jaycar MP3735 12V/24V 30A MPPT Solar Charge Controller for charging my office. It’s got a micro on board so let’s open the box and try and get more information out of it.

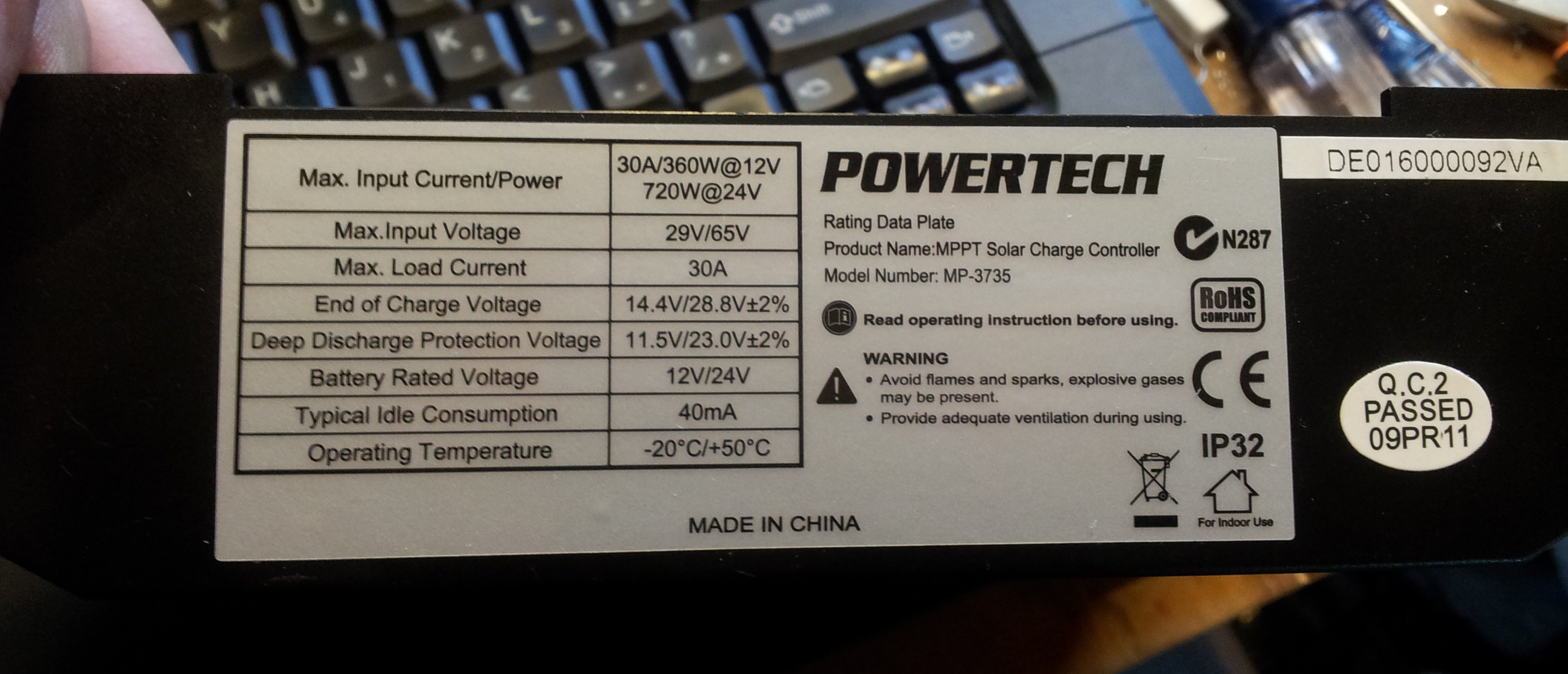

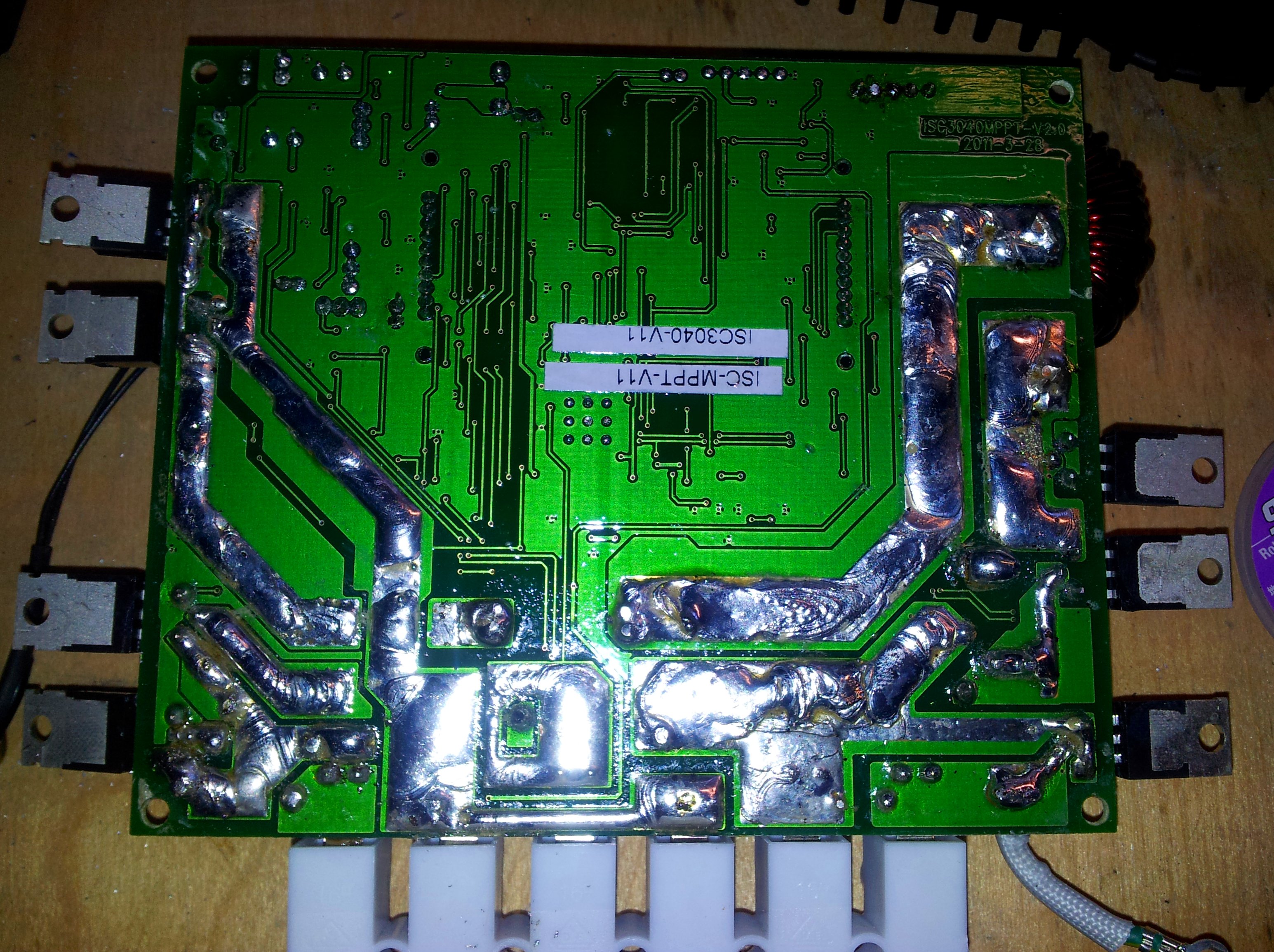

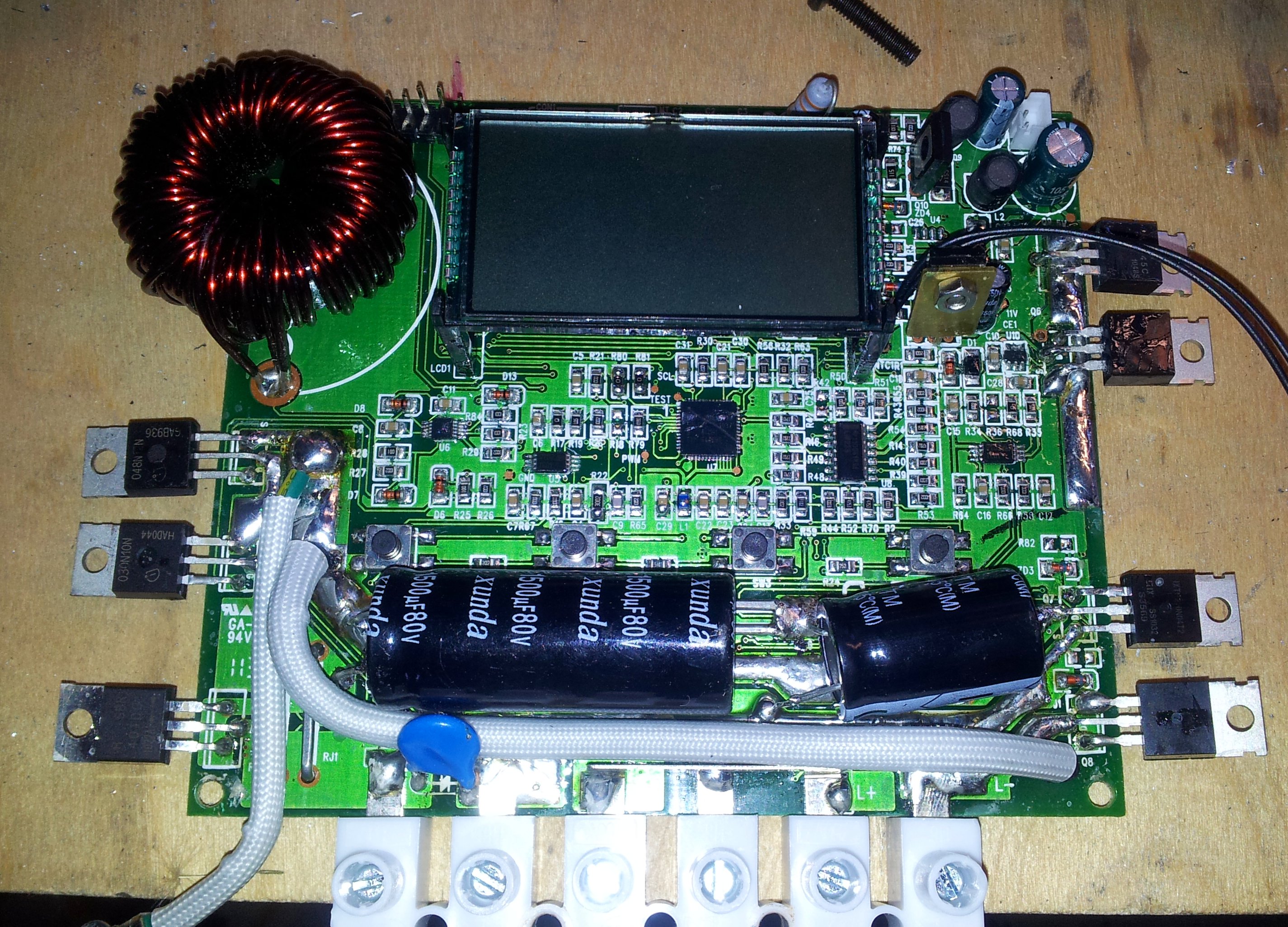

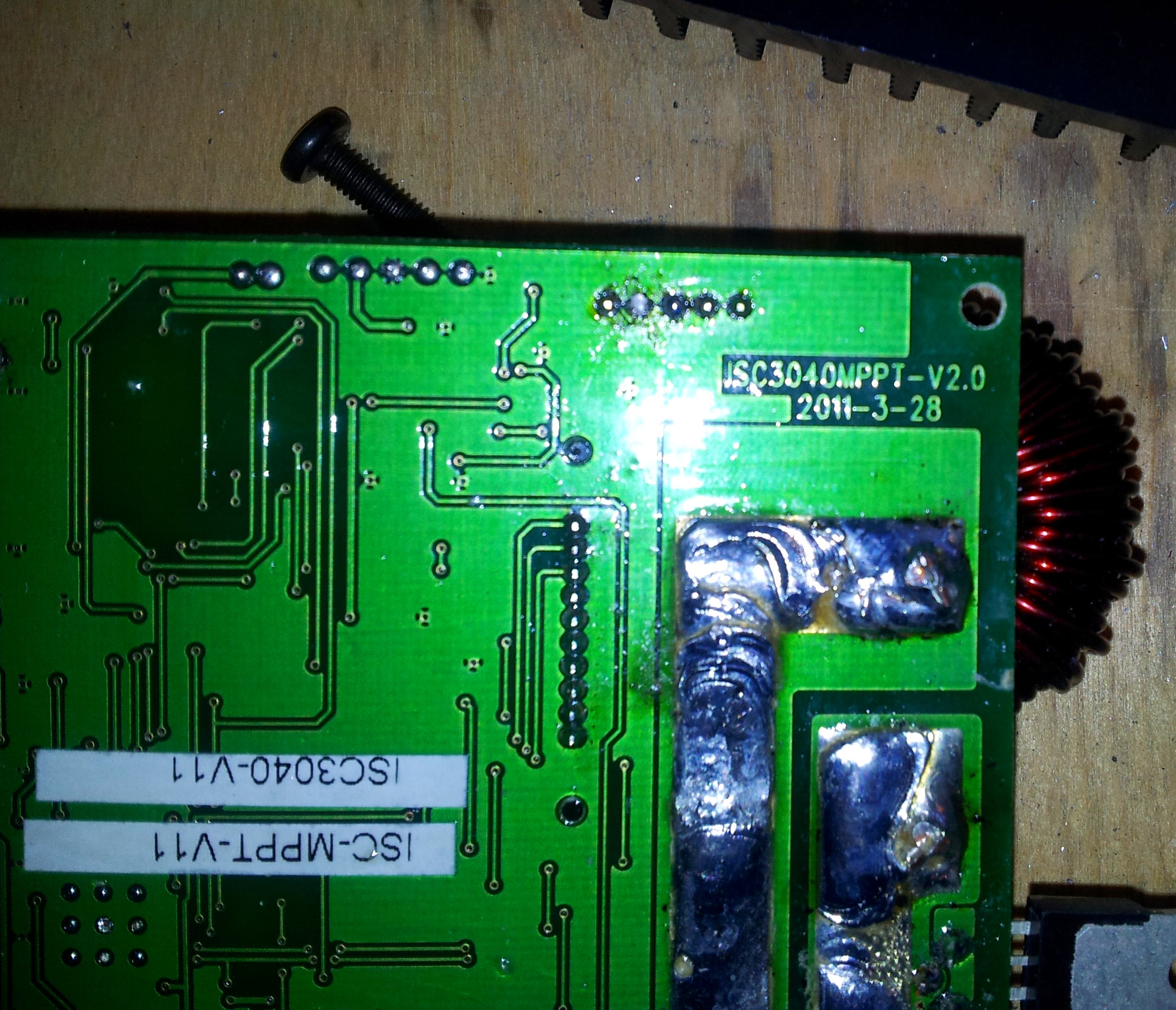

The board ID reads:
ISC3040MPPT-V2.0
2011-3-28
The stickers read:
ISC-MPPT-V11
ISC3040-V11
Searching for similar keeps bringing up the ProVista Maxi ISC 30. Same plastics but a different colour trim. There’s a model range but no mention of monitoring on any.

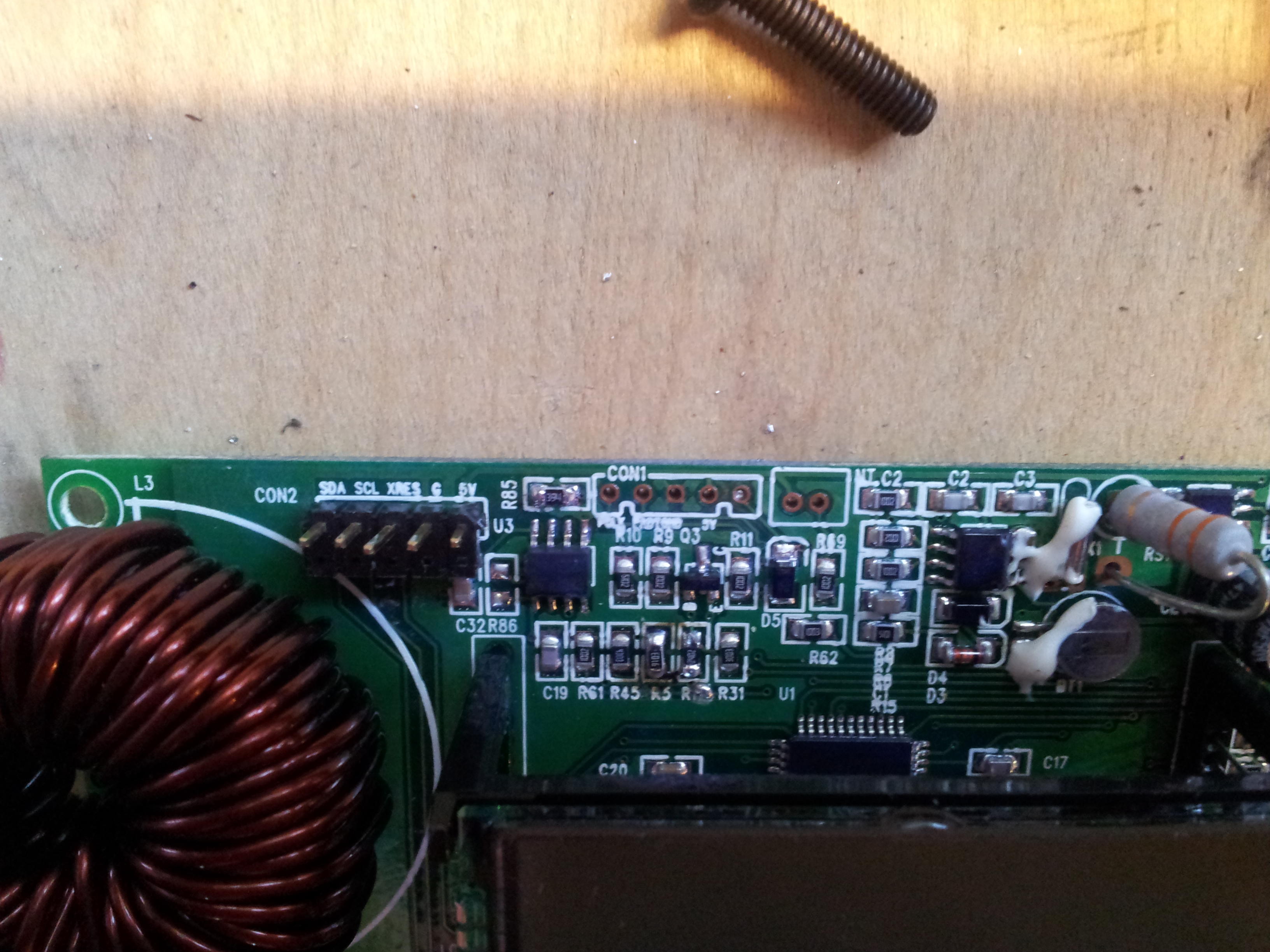

The CON2 header reads:
SDA SCL XRES G 5V
The CON1 header reads something like:
PCLK P??? GND 5V --
CON2 is probably I2C. There’s a periodic packet of data clocked at around 82 kHz.
Everything is 5 V which makes hooking it to my favourite 3.3 V STM32 tricky.
